SM lnsulator Series

SM-70/76/100 Insulator

SM-70/76/100 Insulator

Categories
SM lnsulator Series
Brand
CNHICI
Model
FOB Port
ZhongShang,GuangZhou
Terms of Payment
Western Union,T/T Paypal
Update
10/30/2019
Product Description

Product Model and Meanings

Product Features:

Operating Temperature:-40℃~+140℃
screw nut:Brass. Steel with Zn coating
Material:BMC(Bough Moulding Compound)
SMC(Sheet Moulding Compound)
Color.Nut.material In capability accordance with customer needs
Installation Screw:Option

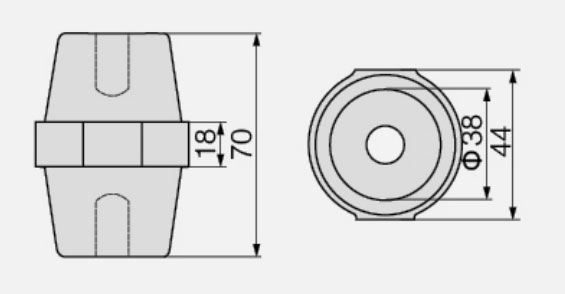

SM-70 Insulator

Insert Insulation performance
Nut size M10 Insulation resistance > 1000MΩ
Screw depth 13.5mm Electrical Performance
Nut Material Copper Operating Voltage 1500V
Strength Pulse voltage 8000V
Axial tensile 4000N Leakage current under 2000V working voltage < 1mA
Bending resistance 5000N
Tightening torque 20N/m

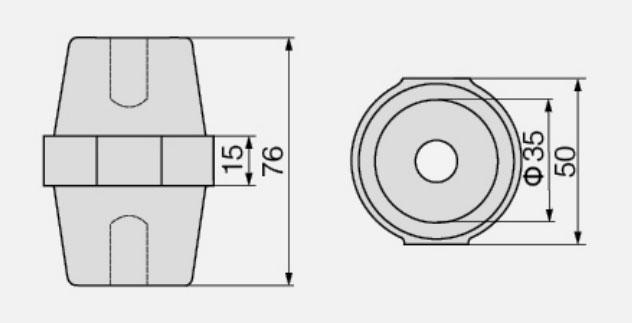

SM-76 Insulator

Insert Insulation performance
Nut size M10 Insulation resistance > 1500MΩ
Screw depth 13.5mm Electrical Performance
Nut Material Copper Operating Voltage 1500V
Strength Pulse voltage 10000V
Axial tensile 4000N Leakage current under 2000V working voltage < 1mA
Bending resistance 5000N
Tightening torque 20N/m

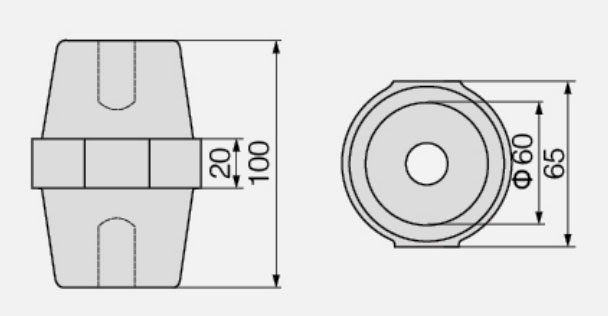

SM-100 Insulator

Insert Insulation performance
Nut size M10 Insulation resistance > 2000MΩ
Screw depth 18mm Electrical Performance
Nut Material Copper Operating Voltage 1500V
Strength Pulse voltage 10000V
Axial tensile 5000N Leakage current under 2000V working voltage < 1mA
Bending resistance 5000N
Tightening torque 20N/m
