SM lnsulator Series

SM-20/255/25 Insulator

SM-20/255/25 Insulator

Categories
SM lnsulator Series
Brand
CNHICI
Model
FOB Port
ZhongShang,GuangZhou
Terms of Payment
Western Union,T/T Paypal
Update
10/30/2019
Product Description

Product Model and Meanings

Product Features:

Operating Temperature:-40℃~+140℃
screw nut:Brass. Steel with Zn coating
Material:BMC(Bough Moulding Compound)
SMC(Sheet Moulding Compound)
Color.Nut.material In capability accordance with customer needs
Installation Screw:Option

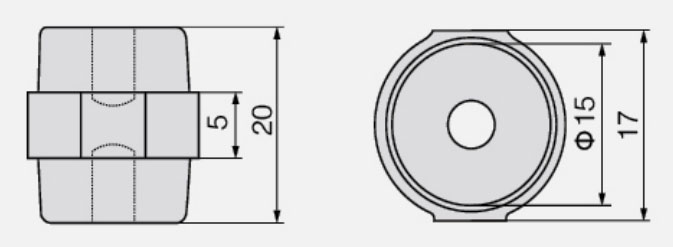

SM-20 Insulator

Insert Insulation performance
Nut size M5 Insulation resistance 300mΩ
Screw depth 7mm Strength
Nut Material Copper Operating Voltage 600V
Strength Pulse voltage 3000V
Axial tensile 500N Leakage current under 2000V working voltage < 1 mA
Bending resistance 1000N
Tightening torque 8N/m

SM-255 Insulator

Insert Insulation performance
Nut size M6 Insulation resistance 300mΩ
Screw depth 9mm Strength
Nut Material Copper Operating Voltage 600V
Strength Pulse voltage 3000V
Axial tensile 800N Leakage current under 2000V working voltage < 1mA
Bending resistance 2000N
Tightening torque 8N/m

SM-25 Insulator

Insert Insulation performance
Nut size M6 Insulation resistance 500mΩ
Screw depth 9mm Strength
Nut Material Copper Operating Voltage 600V
Strength Pulse voltage 3000V
Axial tensile 2000N Leakage current under 2000V working voltage < 1mA
Bending resistance 3000N
Tightening torque 10N/m
